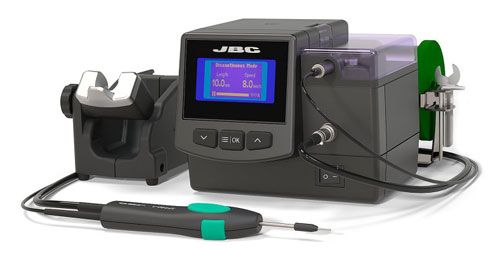

JBC Tools - AUTOM. WIRE FEEDER STATION 100 -120V Ø1 WITH PERFOR. - SF-110VB

SKU SF-110VB

Regular price: $1,830.00
Sale price: $1,673.78

Regular price: $1,830.00
Sale price: $1,673.78

Quantity

Estimated shipping time

You can typically expect your items to arrive withing 4-7 business days, depending on your location and product availability.

What is your Return Policy

Return & Refund Policy

We want you to love your purchase! If something's not right, here's how we can help:

30-Day Returns: Return any item within 30 days of receipt.
Change of Mind: Item must be new, unused, and in original packaging with tags attached. A 25% restocking fee applies, and return shipping is the customer's responsibility.
Defective or Damaged Items: No restocking fee. Just send us a photo/video of the issue, and we'll offer a replacement or full refund.
Wrong Item Received: Let us know right away — we'll fix it at no cost to you.
How to Start a Return: Email support@thefixationstation.com or call (888) 905-9390 with your order number and reason for return.
Refund Timing: Once we receive and inspect your return, refunds are processed within 7 days (additional time may apply depending on your bank).

Questions? Contact us at support@thefixationstation.com or (888) 905-9390, Monday–Friday, 8 AM–5 PM Mountain Time.

Product Description

This Solder-Wire Feeder allows you to feed solder wire automatically from any position. You can easily configure parameters such as dispensed wire speed and length. You can also monitor the solder consumption thanks to integrated counters.

3 Working Modes

In Continuous Mode solder-wire is fed while the button keeps pressed. Discontinuous Mode allows the configuration of the speed and the solder wire amount that will be fed on each click. Program Mode enables the operator to configurate 3 consecutive feeding steps, obtaining a more dynamic and efficient soldering. Up to 5 programs can be set.

Solder Wire Perforation

The solder feeder features a small blade that perforates the solder wire down to the flux core while feeding it. This perforation process allows better flux flow and outgassing and avoids solder and flux splashing when soldering

SF includes the ergonomic SF280 Auto Solder-Wire Handle and the ø 1 mm GSF10V Guide Set. Compatible Guide Kits without Solder-Wire Perforation are also available.

Product Includes

(1) SF Auto Solder-Wire Feeder
(1) SF280 Auto Solder-Wire Handle
(1) GSF10V Guide Kit ø1.0 mm for SF280 with perforation

Specifications

Weight: 1.9 kg / 4.2 lb.
Solder Wire Diameter: ø 0.5 - 1.5 mm / ø 0.02 - 0.059 in
Max. Wire Length: 250 mm / 9.84 in
Max. Forward Speed: 120 mm/s / 4.72 in/s
Max. Reverse Speed: 120 mm/s / 4.72 in/s
Operating Temp. Range: 10 - 50°C / 50 - 122°F

Compatible Solder Reel

Weight: Up to 1 kg / 2.2 Ib
Diameter: Max. 80 mm / 3.15 in
Height: Max. 75 mm / 2.95 in
Stand Axis: ø 10 mm / ø 0.4 in

Connectivity

USB connector station-PC
Robot connector

Weight & Dimensions

Premium Stations Weight: 2.32 kg. / 5.11 lb.
Premium Stations Dimensions: 140 x 150 x 120 mm / 5.51 x 5.91 x 4.72 in
Package Weight: 3.23 kg. / 7.12 lb.
Package Dimensions: 368 x 368 x 195 mm / 14.49 x 14.49 x 7.68 in
