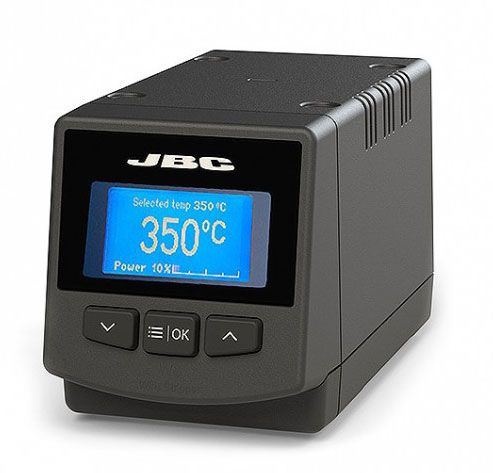

JBC Tools - CONTROL UNIT FOR 1 TOOL 120V - DI-1D

SKU DI-1D

Regular price: $7,502.30

Regular price: $7,502.30

Quantity

Estimated shipping time

You can typically expect your items to arrive withing 4-7 business days, depending on your location and product availability.

What is your Return Policy

Return & Refund Policy

We want you to love your purchase! If something's not right, here's how we can help:

30-Day Returns: Return any item within 30 days of receipt.
Change of Mind: Item must be new, unused, and in original packaging with tags attached. A 25% restocking fee applies, and return shipping is the customer's responsibility.
Defective or Damaged Items: No restocking fee. Just send us a photo/video of the issue, and we'll offer a replacement or full refund.
Wrong Item Received: Let us know right away — we'll fix it at no cost to you.
How to Start a Return: Email support@thefixationstation.com or call (888) 905-9390 with your order number and reason for return.
Refund Timing: Once we receive and inspect your return, refunds are processed within 7 days (additional time may apply depending on your bank).

Questions? Contact us at support@thefixationstation.com or (888) 905-9390, Monday–Friday, 8 AM–5 PM Mountain Time.

Product Description

This DI manages 1 tool for soldering or desoldering and is fully compatible with 10 different JBC tools. It works with JBC Exclusive Heating System and Sleep & Hibernation Modes.

The DI works with the JBC exclusive Heating System and the intelligent sleep & hibernation features to extend a tip's life up to 5 times longer.
Using the menu you can personalize over 20 parameters to help manage the soldering process.
The USB connector allows to update software, create graphs and manage parameters from a PC.
For a basic working system, you need at least 1 stand, 1 tool and 1 cartridge.
The DI-1D use MS-A (Self Contained) or MV-A (Shop Air Required) Desolder Module
The DI-1D use MN-A Nitrogen Flow Regulator.
For a complete working system, 1 stand, 1 tool, and 1 cartridge are required.

Specifications

Selectable Temperature: 90 to 450°C / 190 to 840°F
Sleep and Hibernation Mode: These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.
Max. and Min. Temperature: Limit the temperature range in which the operator is allowed to work.
Temperature Levels: Instant selection of up to 3 editable temperature settings for solder joints with different heat requirement.
PIN Protection: Keep station parameters protected against unauthorized access.

Connectivity

USB-B (front): Firmware upgrade / Software PC / Traceability
Equipotential bonding
ESD/EOS / ESD-Safe: Yes

Power Supply

Peak Power: 130 W - 23.5 V
Operating temp. range: 10 to 40°C / 50 to 104°F

Weight & Dimensions

Control Unit Weight: 2.15 kg. / 4.75 lb.
Control Unit Dimensions: 180 x 94 x 106 mm / 7.09 x 3.70 x 4.17 in
Package Weight: 2.50 kg. / 5.51 lb.
Package Dimensions: 220 x 213 x 160 mm / 8.66 x 8.39 x 6.30 in
