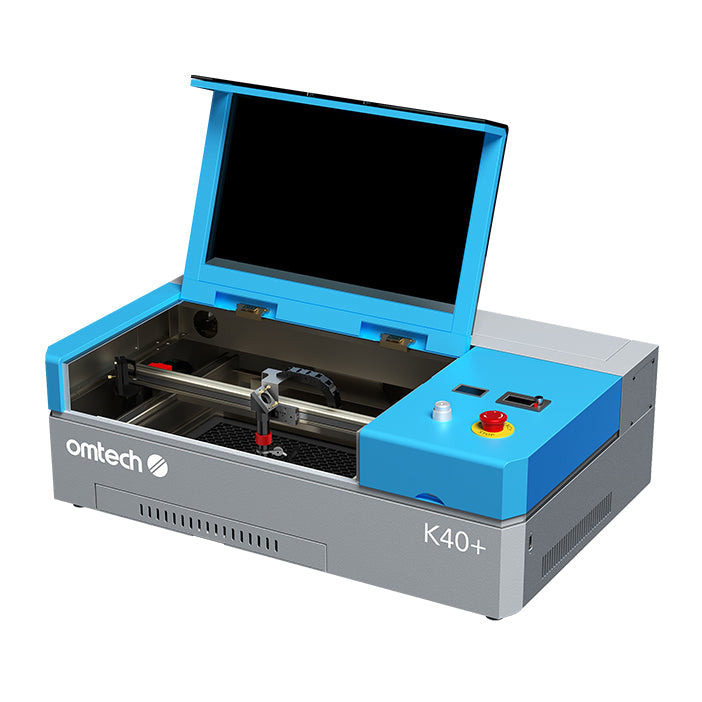

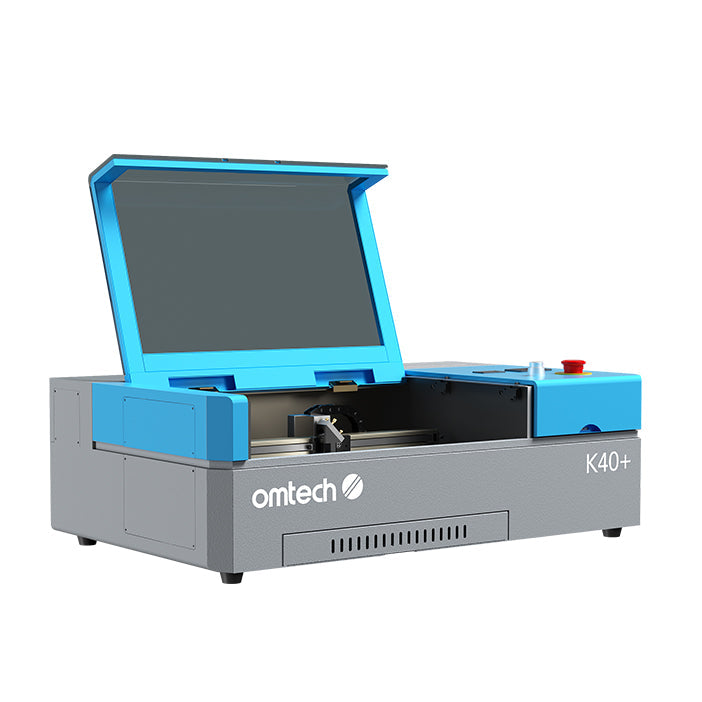

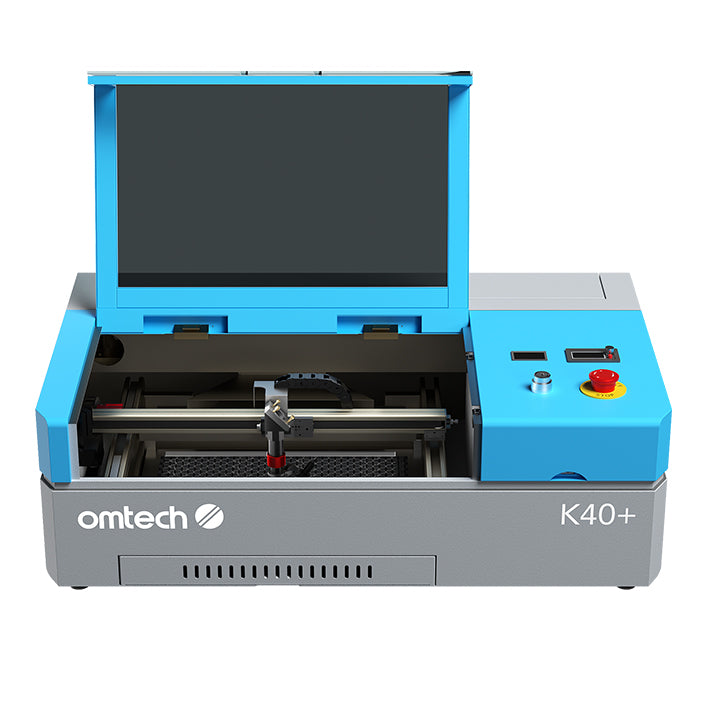

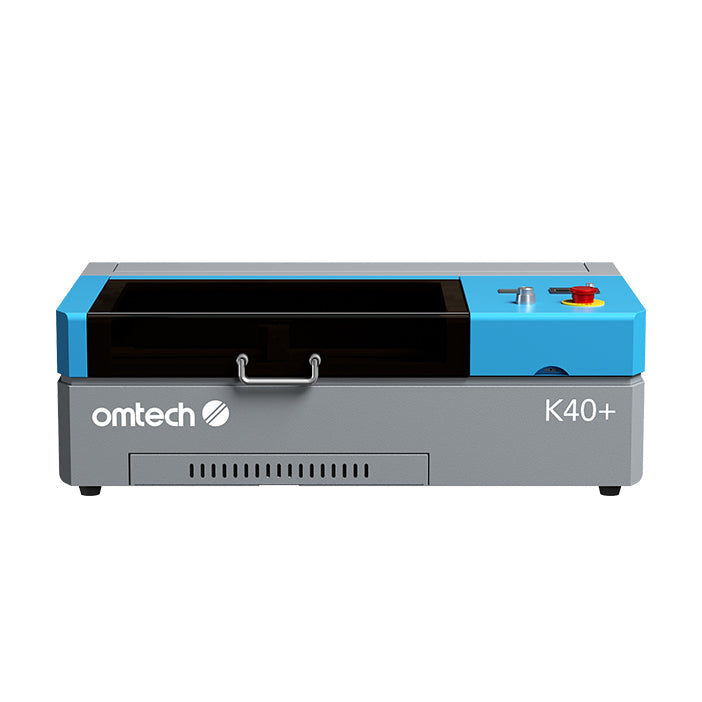

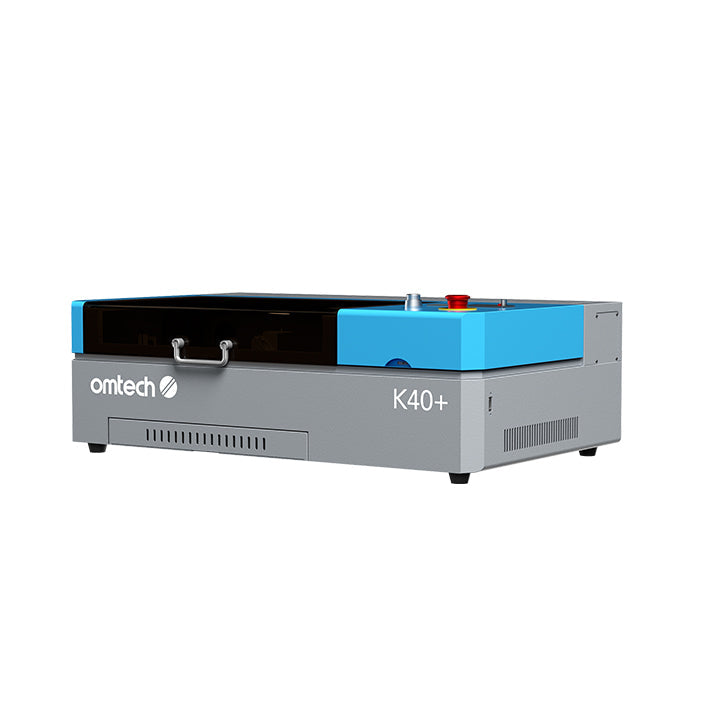

OMTech K40+ 45W Desktop CO2 Laser Engraver with 8" x 12" Working Area and Detachable Honeycomb Workbed

Important Resources and downloads:

• Visit this machine in person: Book Here
• Download the Manual
• Download the LaserDRW software
• NOTE: Does not include LightBurn Software
• Replacement: Laser Tube, Power Supply, Mirrors, Lens

Convenient Size:

• 8” x 12” (200 x 300mm) engraving area
• 32” x 20” x 10” (80 x 50 x 25cm) overall dimensions
• Net Weight 51 lbs (23kg).
• Compact laser engraving machine with endless creative possibilities


Specs:

• Recommended engraving speeds: 100–255 mm/s
• 12mm Focal lens diameter
• 2” Focal distance
• 20mm Mirror diameter
• Resolution up to 1500 dpi
• 0.5” Standard Z-depth (Workspace height with vented level board installed)
• 2.5” Max Z-depth (Workspace height with vented level board removed)

Compatibility:

• Includes LaserDRW software with file viewing, project framing, basic design functions, and speed laser settings to convert your images into engravable G-Code files.
• LaserDRW is perfectly compatible with Windows 7, 8, and 10 (64/32 bit), XP, 2000, and Vista.
• Work side-by-side with programs like Corellaser
• Photo-ready for images in TIF, BMP, JPG, JPEG, WMF, EMF, and PLT formats
• Not readily compatible with rotary axis devices

Power:

• The integrated power supply features increased response speed, performance, and cutting power—it’s beaming with possibilities!
• Upgraded X/Y rail gantry system and high-precision stepper motor equipped to provide stability and extreme accuracy to your laser engraving projects
• Uses standard 110V AC power connection

Laser Tube Lifetime:

• 40W CO2 laser tube with an estimated lifetime of up to 2,000 operation hours depending on power setting usage and water cooling performance
• PLEASE NOTE: Frequent use of high laser power settings will shorten the laser tube lifetime as follows:
• Low Power 10–40% = 1,500–2,000 Hours
• Moderate Power 40–70% = 1,000–1,200 Hours
• High Power 70–100% = 400–600 Hours

Cutting-Edge Features:

• COMPACT ENGRAVING POWER: Our most portable CO2 laser easily fits on your workbench, offers accessibility to beginner engravers, and packs plenty of power for your small craft projects.
• DIGITAL CONTROL & TEMP. LCD: A user-friendly LCD control board sets the laser power, while two temperature displays keep you updated with the laser power supply and cooling water temp. levels.
• RED DOT GUIDANCE: A red dot pointer mounted on the laser head quickly indicates engraving points, marks the machine’s path, and identifies positioning sizes, allowing an effortless project setup process.
• DOUBLE DUTY WORK SURFACE: Equipped with a stabilizer clamp to hold irregular-shaped objects in place and a vented level board for regular-shaped products.

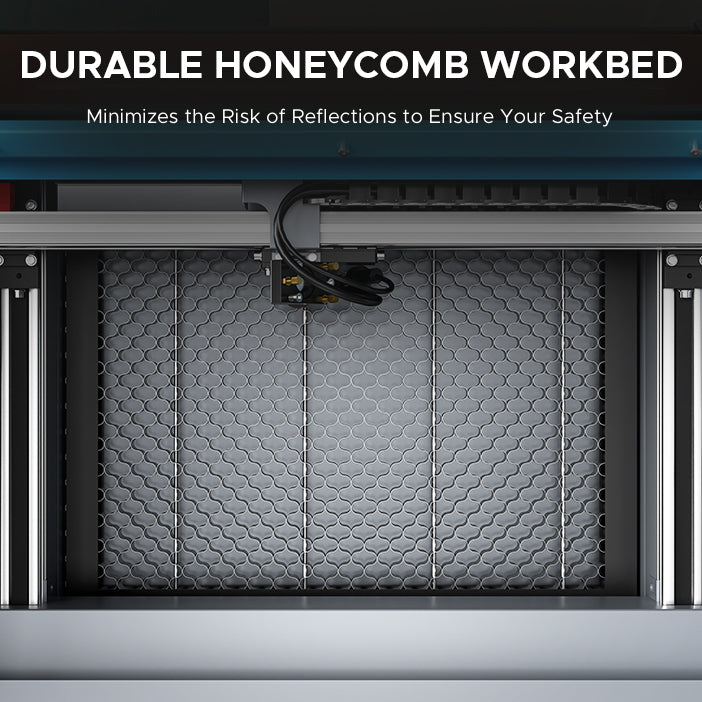

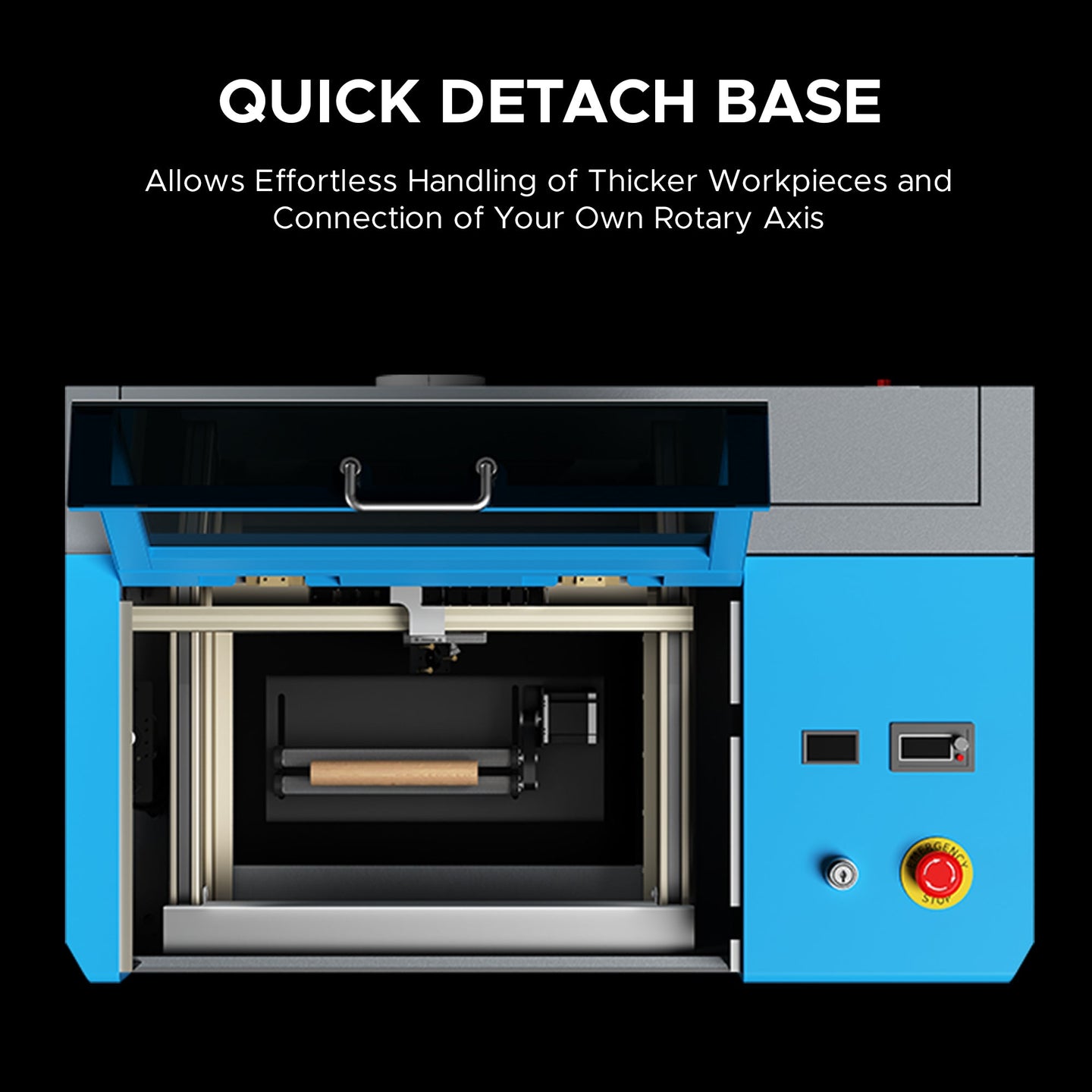

• REMOVABLE WORKBED: Remove the vented level board to add 2” of Z-depth and accommodate taller materials; however, this reduces the workbed’s X and Y dimensions to 8” x 5”.

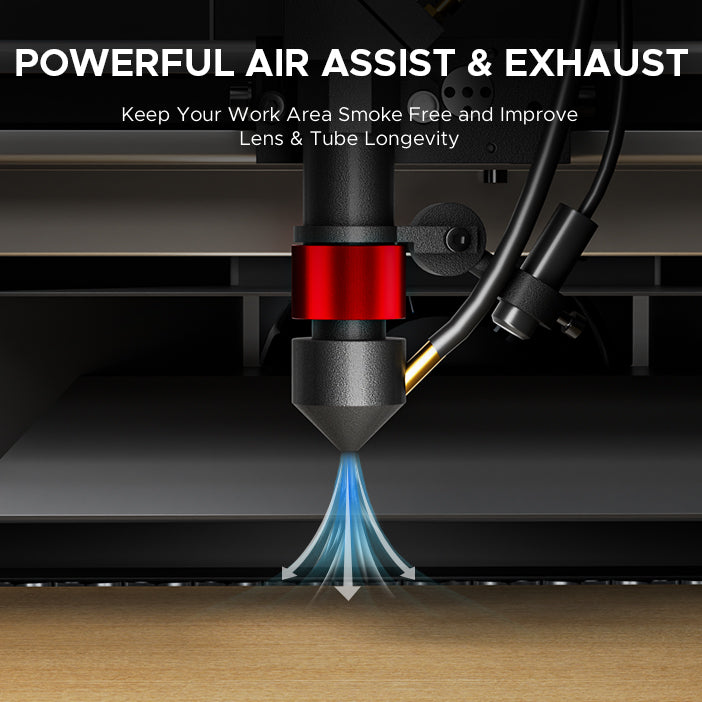

• BUILT-IN VENTILATION: Integrated fan to boost laser performance, improve ventilation, and reduce noise. A triangular exhaust port and built-in air compressor create a safe work environment.
• EMERGENCY STOP: The E-Stop safety button immediately stops the machine in case of emergency.
• WATER COOLING SYSTEM: Pre-installed hoses and the included water pump allow for a fast and easy setup. Only use with distilled water, ensuring it stays between 60–70°F (16–21°C).
• CONVENIENT MOBILITY: Four removable locking wheels allow fluid portability across your workspace.

Package Includes:

• 1 x Laser Engraver Machine
• 1 x Water Pump
• 1 x USB Type-B to Type-A Cable
• 1 x USB Flash Drive with Software
• 1 x USB Key
• 1 x Venting Exhaust Duct
• 1 x Power Cord
• 1 x Double-Sided Tape
• 1 x Stainless Steel Clamp
• 4 x Locking Caster Wheels
• 1 x 7mm Acrylic Focus Tool
• 1 x Instruction Manual

Warranty:

• No need to worry! We offer a 2-year parts warranty on all machines.
• 6-month warranty on all laser tubes and power supplies 60W and below

Certifications:

• FDA Compliant
• CE Certification
• ISO9001 Quality Certification
• One 45-minute Virtual Tech Support appointment with OMTech Specialists in Anaheim, California

Compatible Materials:

Marking/Engraving:

• Acrylic
• Wood
• Leather
• Plastics
• Fabrics
• Glass
• Rubber
• Cork
• Brick
• Granite
• Marble
• Tile
• River Rock
• Bone
• Melamine
• Phenolic
• *Aluminum
• *Stainless Steel
• *Titanium

*Cannot cut hardwoods like mahogany

*CO2 lasers only mark bare metals when anodized or treated.

Contact us with questions on specific materials not listed, we can process a sample for confirmation.

Some PVC-based acrylics can create toxic fumes when lasered.
