It offers an intuitive user interface which provides quick access to station parameters. Additionally, it allows you to give a repetitive performance working with Profiles Modes especially when Rework Arms such as RWB, RWS or RWT are used. In this mode you can set up or edit as many as 25 temperature profiles and air flow.
- JTU operates with 2 different tools JTT Heater Hose Set or TET Precision Heater Hose Set.
- The combination of JBC Exclusive Hot Air System with protectors, tripods and extractors ensures desoldering components easily and safety.
- Its easy-to-use menu is configurable in 10 different languages: English, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean and Chinese.
JTT Heater Hose Set allows you to repair all medium and large SMDs quickly and safely, even the biggest QFPs and PLCCs.
JTS Stand works exclusively with JTT Heater Hose Set and JTU Hot Air Control Unit.
Extractor Stand for Hot Air desk to better store and select extractors, protectors and tripods for hot air stations.
JBC's exclusive hot air system uses jointly extractors, protectors and tripods for a quickly and safely desoldering.

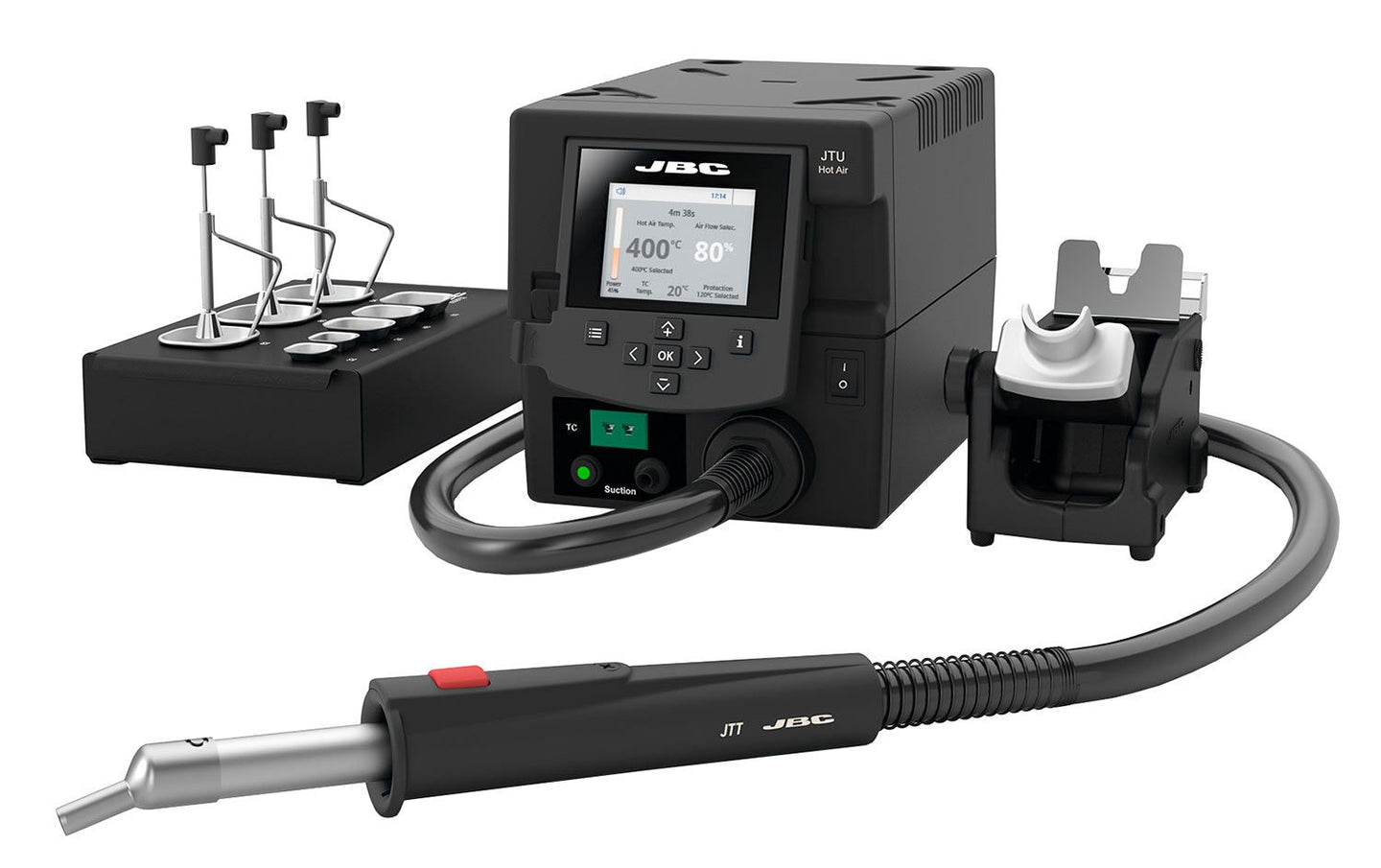

Product Includes
- (1) Hot Air Control Unit
- (1) JTT Heater Hose Set
- (1) JTS Stand for JTT Heater Hose Set
- (1) ESHT Extractor Stand for Hot Air
- (1) E2052 Extractor 52 (20 x 20 mm)
- (1) E2064 Extractor 64 (20 x 26 mm)
- (1) E2184 Extractor 80 (24 x 24 mm)
- (1) P2220 Protector 32 (10 x 10 mm)
- (1) P2235 Protector 24 (12 x 17 mm)
- (1) P4000 Protector 44 (12.5 x 12.5 mm)
- (1) P2230 Protector 48 (15 x 15 mm)
- (1) P4010 Protector 60 (17 x 17 mm)
- (1) T2050 Tripod Ø 39 mm
- (1) T2250 Tripod Ø 85 mm
- (1) CU110 Cups for Extractors & Tripods
- (1) A2330 Suction Tube for Protectors & Extractors
- (1) JN2015 Bent Nozzle Ø4 - 18º for JTT
- (1) JN2012 Bent Nozzle Ø6 - 18º for JTT
- (1) JN2020 Straight Nozzle Ø8 for JTT
- (1) PH218 Thermocouple Type K
- It works exclusively with JTU Control Unit.
- To protect a particular area or an adjacent components, we recommend the use of Protectors and Extractors and, to direct the heat to a particular area and protect adjacent components you can use Nozzles for JTT.
- Its adjustable tool holder adapts to your work position and Easy Nozzle Changer allows you to switch between nozzles without interrupting your work.
- The auto-stop function is a safety measure which guarantees that the heat is automatically cut off when the tool is in the stand. This prevents potential overheating, saves power and extends heater durability.
-
Extractors: E2052, E2064 and E2184.
-
Protectors: P2220, P2235, P4000, P2230 and P4010.
-
Tripods: T2050 and T2250.
Specifications
-
Selectable Temperature: 150 to 450ºC (300-840ºF)
-
Air Flow: 5 to 50 SLPM
-
Temperature Profiles: Design specific thermal profiles to avoid thermal shock during soldering processes. Up to 25 fully configurable soldering profiles can be stored.
-
Operating Modes: Heating / Profiles / Cooling
-
Vacuum: 30% / 228 mmHg / 9 inHg
Connectivity
-
Type K thermocouple: Can be used both for Control and Protection purposes.
-
USB-B (rear): Software PC
-
USB-A (front): Firmware update, Graphics / Profiles management
-
Robot: RS-232 remote control
-
Pedal: Optional tool control
-
Equipotential bonding: Optional connection to EPA
- ESD/EOS / ESD-safe
Power Supply
-
Nominal Power: 700 W
-
Operating Temp. Range: 10 to 50ºC / 50 to 120ºF
Dimensions and Weight
-
Weight Premium Station: 4.93 kg. / 10.86 lb.
-
Weight Premium Dimensions: 232 x 148 x 160 mm / 9.13 x 5.83 x 6.30 in
-
Package Weight: 6.01 kg. / 13.24 lb.
-
Package Dimensions: 490 x 485 x 278 mm / 19.29 x 19.09 x 10.94 in
