JBC Tools - Precision Hot Air Station 120V - TESE-1B

SKU TESE-1B

Regular price: $29,347.19

Regular price: $29,347.19

Quantity

Estimated shipping time

You can typically expect your items to arrive withing 4-7 business days, depending on your location and product availability.

What is your Return Policy

Return & Refund Policy

We want you to love your purchase! If something's not right, here's how we can help:

30-Day Returns: Return any item within 30 days of receipt.
Change of Mind: Item must be new, unused, and in original packaging with tags attached. A 25% restocking fee applies, and return shipping is the customer's responsibility.
Defective or Damaged Items: No restocking fee. Just send us a photo/video of the issue, and we'll offer a replacement or full refund.
Wrong Item Received: Let us know right away — we'll fix it at no cost to you.
How to Start a Return: Email support@thefixationstation.com or call (888) 905-9390 with your order number and reason for return.
Refund Timing: Once we receive and inspect your return, refunds are processed within 7 days (additional time may apply depending on your bank).

Questions? Contact us at support@thefixationstation.com or (888) 905-9390, Monday–Friday, 8 AM–5 PM Mountain Time.

Product Description

It offers an intuitive user interface which provides quick access to station parameters. Additionally, it allows you to give a repetitive performance working with Profiles Modes especially when Rework Arms such as RWB, RWS or RWT are used. In this mode you can set up or edit as many as 25 temperature profiles and air flow.

JTU operates with 2 different tools JTT Heater Hose Set or TET Precision Heater Hose Set.
The combination of JBC Exclusive Hot Air System with protectors, tripods and extractors ensures desoldering components easily and safety.
Its easy-to-use menu is configurable in 10 different languages: English, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean and Chinese.
TET Precision Heater Hose Set allows you to repair all small and medium SMDs quickly and safely.
It works exclusively with JTU Control Unit.
TES Stand works exclusively with TET Precision Heater Hose Set and JTU Hot Air Control Unit.

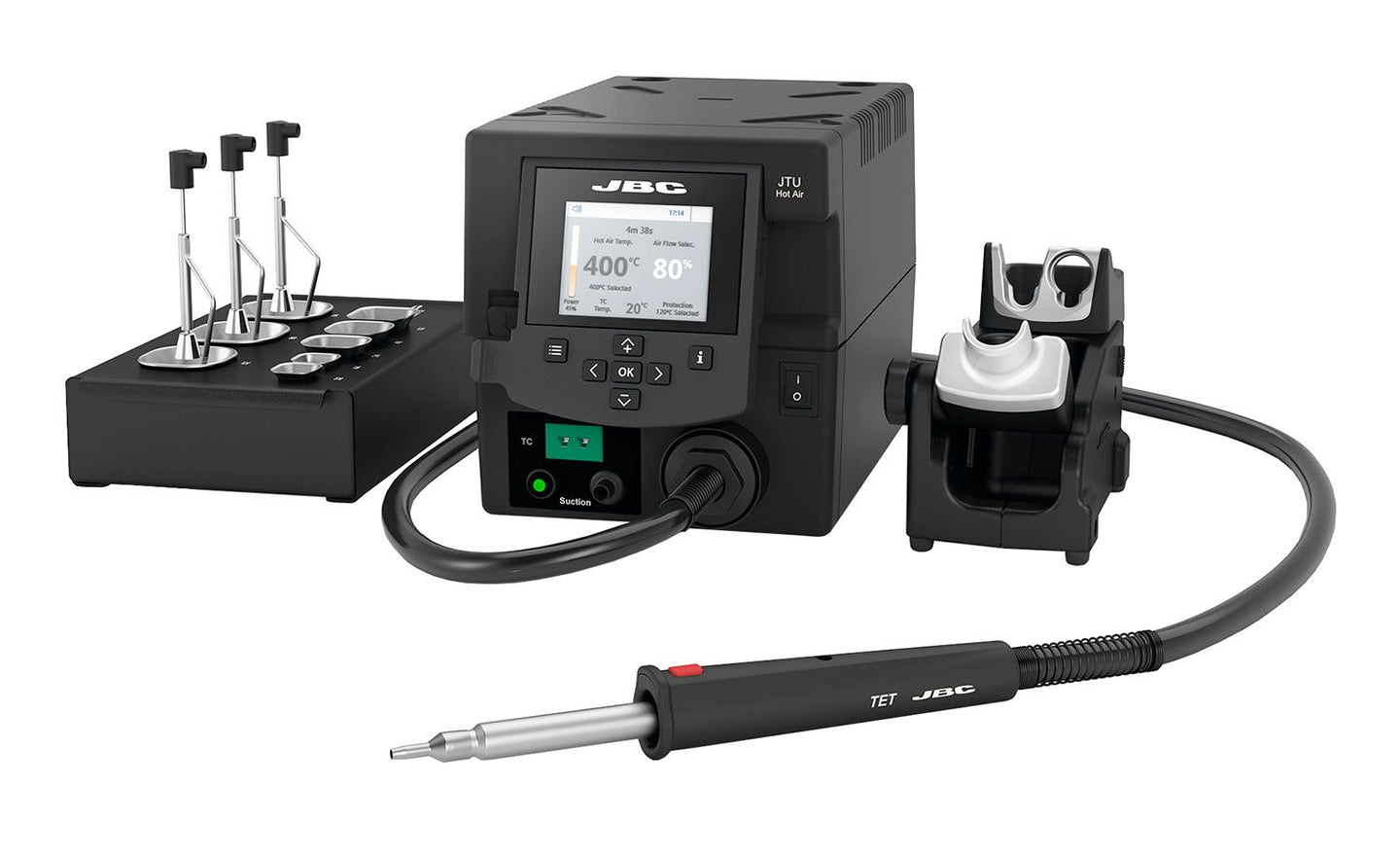

Product Includes

(1) Hot Air Control Unit
(1) TET Precision Heater Hose Set
(1) TES Stand for TET Precision Heater Hose Set
(1) ESHT Extractor Stand for Hot Air
(1) E2052 Extractor 52 (20 x 20mm)
(1) E2064 Extractor 64 (20 x 26mm)
(1) E2184 Extractor 80 (24 x 24mm)
(1) P2220 Protector 32 (10 x 10mm)
(1) P2235 Protector 24 (12 x 7.0mm)
(1) P4000 Protector 44 (12.5 x 12.5mm)
(1) P2230 Protector 48 (15 x 15mm)
(1) P4010 Protector 60 (17 x 17mm)
(1) T2050 Tripod Ø 39mm
(1) T2250 Tripod Ø 85mm
(1) CU110 Cups for Extractors & Tripods
(1) A2330 Suction Tube for Protectors & Extractors
(1) TN9209 Straight Nozzle Ø3 for TET
(1) TN9208 Straight Nozzle Ø4 for TET
(1) TN9080 Straight Nozzle Ø5 for TET
(1) PH218 Thermocouple Type K

To protect a particular area or an adjacent components, we recommend the use of Protectors and Extractors and, to direct the heat to a particular area and protect adjacent components you can use Nozzles for TET.
Its adjustable tool holder adapts to your work position and Easy Nozzle Changer allows you to switch between nozzles without interrupting your work.
The auto-stop function is a safety measure which guarantees that the heat is automatically cut off when the tool is in the stand. This prevents potential overheating and you save power and lengthen the durability of the heater.
The operator can choose between 3 modes of activation to start blowing hot air: Auto-start (just lifting the tool), pressing the button on the tool or using P405 Pedal instead of the stand.

Specifications

Selectable Temperature: 150 to 450ºC (300-840ºF)
Air Flow: 2 to 17 SLPM
Temperature Profiles: Design specific thermal profiles to avoid thermal shock during soldering processes. Up to 25 fully configurable soldering profiles can be stored.
Operating Modes: Heating / Profiles / Cooling
Vacuum: 30% / 228 mmHg / 9 inHg

Connectivity

Type K thermocouple: Can be used both for Control and Protection purposes.
USB-B (rear): Software PC
USB-A (front): Firmware update, Graphics / Profiles management
Robot: RS-232 remote control
Pedal: Optional tool control
Equipotential bonding: Optional connection to EPA
ESD/EOS / ESD-safe

Power Supply

Nominal Power: 300 W
Operating Temp. Range: 10 to 50ºC / 50 to 120ºF

Dimensions and Weight

Premium Station Weight: 4.72 kg. / 10.41 lb.
Premium Station Dimensions: 232 x 148 x 160 mm / 9.1 x 5.8 x 6.3 in
Package Weight: 5.68 kg./ 12.52 lb.
Package Dimensions: 490 x 485 x 278 mm / 19.2 x 19.1 x 10.9 in
