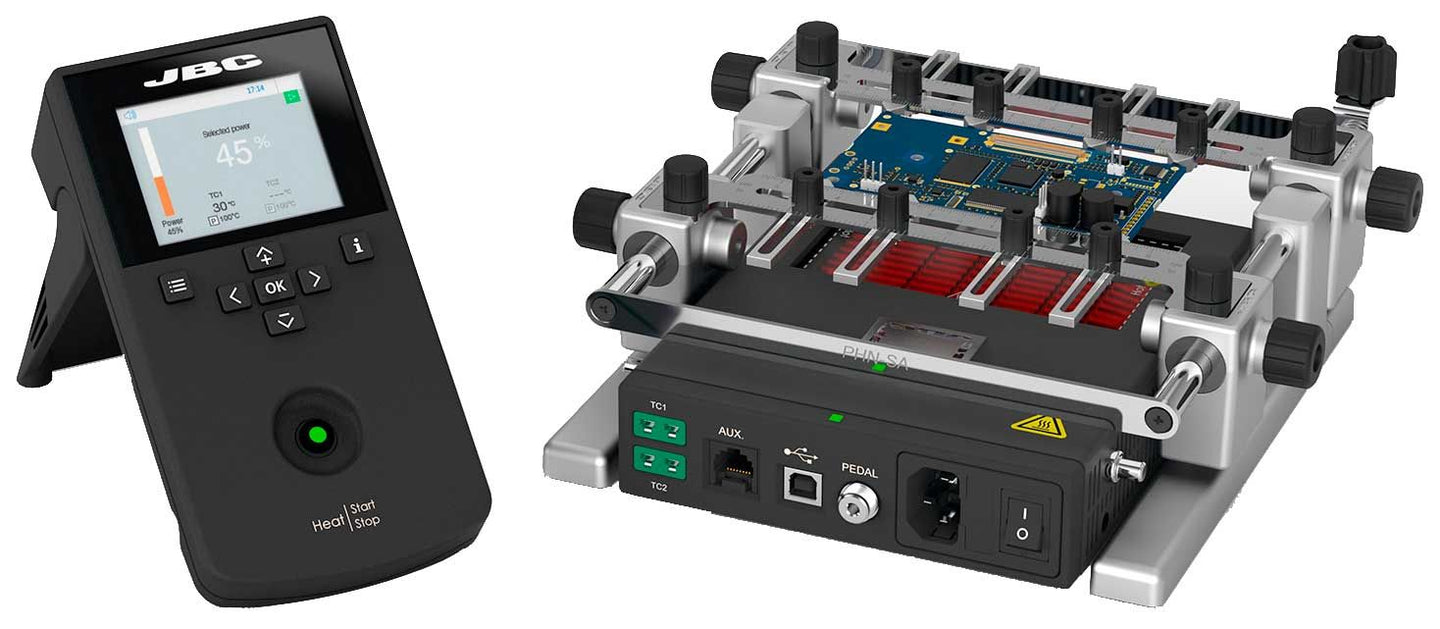

JBC Tools - Preheater Set for PCBs up to 11 x 7 cm / 4 x 3" - 120V - PHNE-1KA

SKU PHNE-1KA

Regular price: $2,730.00
Sale price: $2,496.95

Regular price: $2,730.00
Sale price: $2,496.95

Quantity

Estimated shipping time

You can typically expect your items to arrive withing 4-7 business days, depending on your location and product availability.

What is your Return Policy

Return & Refund Policy

We want you to love your purchase! If something's not right, here's how we can help:

30-Day Returns: Return any item within 30 days of receipt.
Change of Mind: Item must be new, unused, and in original packaging with tags attached. A 25% restocking fee applies, and return shipping is the customer's responsibility.
Defective or Damaged Items: No restocking fee. Just send us a photo/video of the issue, and we'll offer a replacement or full refund.
Wrong Item Received: Let us know right away — we'll fix it at no cost to you.
How to Start a Return: Email support@thefixationstation.com or call (888) 905-9390 with your order number and reason for return.
Refund Timing: Once we receive and inspect your return, refunds are processed within 7 days (additional time may apply depending on your bank).

Questions? Contact us at support@thefixationstation.com or (888) 905-9390, Monday–Friday, 8 AM–5 PM Mountain Time.

Product Description

Reduce the risk of thermal shock while reworking. It is the best solution for rework on small PCBAs, such as the once commonly used in smartphones. It features a heating area of 108 x 70 mm / 4.25 x 2.75 in and two TC connections.

Matchless reliability in temperature accuracy and control of the PCBA so that no component is damaged.
The Preheater can be operated easily and conveniently via the intuitive menu navigation.
Two thermocouple can be connected in any of the three work modes.
PHN-SA Nano PBC Support is perfectly adapted to any type of PCB by means of its many adjustable components and its 3 adjustable clearance positions 28, 50 or 70 mm / 1.1, 2 or 2.8 in.
By means of JBC Suite Software, the Preheater can be synchronized with other JBC Hot Air, Soldering Stations as well as Fume Extractor equipment in order for them to work jointly and to perform your rework process optimally.
Heating area of 108 x 70 mm / 4.25" x 2.75".
Temp. range of 50 to 250°C / 120 to 482°F.

Product Includes

(1) Heater Unit
(1) Console
(1) PHN-SA Nano PCB Support
(2) PH218 Thermocouple Type K
(1) PH217 Kapton Tape

Features Three Work Modes

Power Mode allows working at a fixed power level with the option of using protection thermocouple.
Temperature Mode keeps the PCBA at a selected temperature, using the regulation thermocouple and, optionally, protection thermocouples.
Profile Mode allows control of the heating rate of the PCBA by the use of a control and protection thermocouple, without exceeding the recommended limit levels in each application. It features 22 customizable profiles.

The application of JBC preheaters is indispensable for rework on multi-layered PCBAs and/or large ground planes in order to avoid thermal stress and facilitate soldering as well as desoldering processes.
For an optimal result it is necessary to preheat the PCB and its components with controlled temperature profiles within the recommended limit values for each application. JBC preheaters feature temperature profiles specially designed for this purpose and customizable according to need.
With the software JBCSuite the preheater can be synchronized with other JBC hot-air, soldering as well as fume extractor equipment in order for them to work jointly and to perform your rework process optimally.

Specifications

Temperature Range: 50 to 250°C / 120 to 482°F
Heating Area: 108 x 70 mm / 4.25 x 2.75 in
Temperature Measurement: Thermocouple type K
Connectivity USB-B (rear): Software PC
Connectivity USB-A (front): Firmware update (Graphics management)
Robot: RS-232 remote control
Aux: Console connection
Pedal: Connect a pedal (ref.P-005) to control the heater.
ESD/EOS / ESD-safe: Yes
Power Supply Maximum Power: 300W
JBC-Set Temperate. Profiles: 3 profiles (2, 3 or 4 steps)
User Profiles: 20 (up to 6 steps for each)
Maximum Work Time: 600 min or indefinite
Dimensions & Weight PreHeater: 179 x 165 x 42 mm / 3.10 kg. / 7.05 x 6.50 x 1.65 in / 6.83 lb.
Dimensions & Weight Package: 280 x 280 x 164 mm / 4.20 kg. / 11.02 x 11.02 x 6.46 in / 9.26 lb.
