JBC

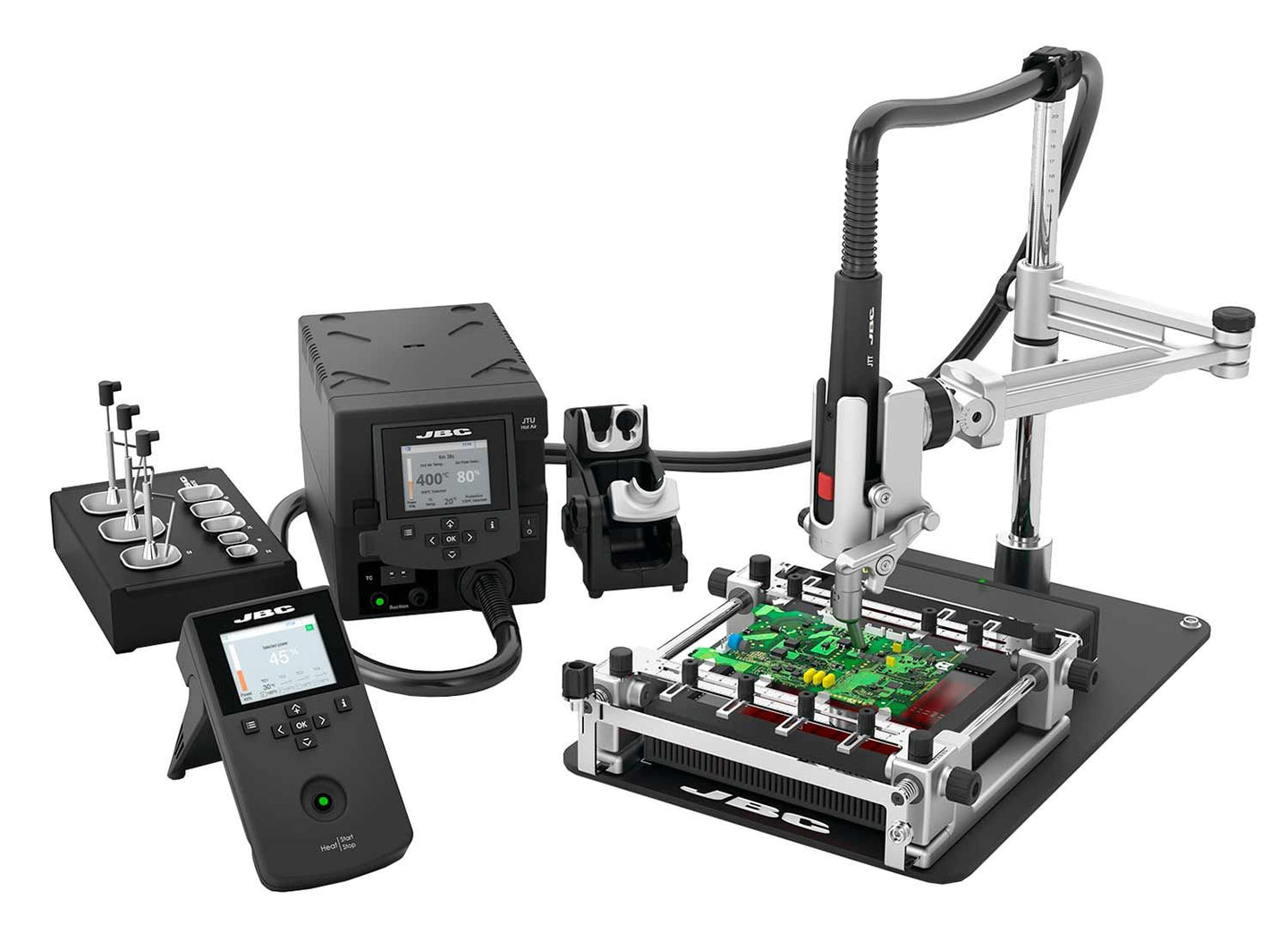

JBC Tools - SMD Rework System 120V - SRWS-1SC

SKU SRWS-1SC

Regular price: $7,360.00
Sale price: $6,731.71

Regular price: $7,360.00
Sale price: $6,731.71

Quantity

Estimated shipping time

You can typically expect your items to arrive withing 4-7 business days, depending on your location and product availability.

What is your Return Policy

Return & Refund Policy

We want you to love your purchase! If something's not right, here's how we can help:

30-Day Returns: Return any item within 30 days of receipt.
Change of Mind: Item must be new, unused, and in original packaging with tags attached. A 25% restocking fee applies, and return shipping is the customer's responsibility.
Defective or Damaged Items: No restocking fee. Just send us a photo/video of the issue, and we'll offer a replacement or full refund.
Wrong Item Received: Let us know right away — we'll fix it at no cost to you.
How to Start a Return: Email support@thefixationstation.com or call (888) 905-9390 with your order number and reason for return.
Refund Timing: Once we receive and inspect your return, refunds are processed within 7 days (additional time may apply depending on your bank).

Questions? Contact us at support@thefixationstation.com or (888) 905-9390, Monday–Friday, 8 AM–5 PM Mountain Time.

Product Description

SRS SMD Rework System provides full control over SMD rework processes.

JT Hot Air Station controls the rework task using temperature and air flow profiles.
RWS Rework Arm supports the JTT Heater Hose Set, allowing handsfree operation.
PHSK Small Preheater Set comes with PHS Small Preheater and PSS Small PCB Support.
A variety of Protectors, Extractors and Tripods are included.

Product Includes

(1) JT Hot Air Station
(1) PHSK Small Preheater Set
(1) RWS Rework Adjustable Arm for PHS

JT Hot Air Station Includes

(1) Hot Air Control Unit
(1) JTT Heater Hose Set
(1) JTS Stand for JTT Heater Hose Set
(1) ESHT Extractor Stand for Hot Air
(1) E2052 Extractor 52 (20 x 20 mm)
(1) E2064 Extractor 64 (20 x 26 mm)
(1) E2184 Extractor 80 (24 x 24 mm)
(1) P2220 Protector 32 (10 x 10 mm)
(1) P2235 Protector 24 (12 x 17 mm)
(1) P4000 Protector 44 (12.5 x 12.5 mm)
(1) P2230 Protector 48 (15 x 15 mm)
(1) P4010 Protector 60 (17 x 17 mm)
(1) T2050 Tripod ø 39 mm
(1) T2250 Tripod ø 85 mm
(1) CU110 Cups for Extractors & Tripods
(1) A2330 Suction Tube for Protectors & Extractors
(1) JN2015 Bent Nozzle ø4 - 18° for JTT
(1) JN2012 Bent Nozzle ø6 - 18° for JTT
(1) JN2020 Straight Nozzle ø8 for JTT
(1) PH218 Thermocouple Type K

Preheater Set Includes

(1) Heater unit
(1) Console
(1) PSS Small PCB Support
(2) PH218 Thermocouple Type K
(1) PH217 Kapton Tape

Specifications

Voltage: 120V
ESD-safe: Yes
Premium Stations Weight: 16.59 kg. / 36.57 lb.
Premium Stations Dimensions:232 x 148 x 160 mm / 9.13 x 5.83 x 6.30 in
Package Weight: 19.72 kg. / 43.48 lb.
Package Dimensions: 700 x 410 x 390 mm / 27.56 x 16.14 x 15.35 in

JT Hot Air Station Specifications

Selectable Temperature: 150 to 450ºC (300-840ºF)
Air Flow: 5 to 50 SLPM
Temperature Profiles: Design specific thermal profiles to avoid thermal shock during soldering processes. Up to 25 fully configurable soldering profiles can be stored.
Operating Modes: Heating / Profiles / Cooling
Vacuum: 30% / 228 mmHg / 9 inHg

Connectivity

Type K Thermocouple:Can be used both for Control and Protection purposes.
USB-B (rear): Software PC
USB-A (front): Firmware update, Graphics / Profiles management
Robot: RS-232 remote control
Pedal: Optional tool control
Equipotential bonding: Optional connection to EPA
ESD/EOS / ESD-safe: Yes

Power Supply

Nominal Power: 700 W
Operating Temp. Range: 10 to 50ºC / 50 to 120ºF

Dimensions and Weight

Premium Station Weight: 4.10 kg. / 10.86 lb.
Premium Station Dimensions: 232 x 148 x 160 mm / 9.13 x 5.83 x 6.30 in

Small Preheater Set Specification

Operating Temp. Range: 10 - 40ºC / 50 - 104ºF
Temperature Range: 50 to 250ºC / 120 to 482ºF
Heating Area: 65 x 135 mm / 2.6 x 5.3 in - 1 zone / 130 x 135 mm / 5.1 x 5.3 in - 2 zones
Temperature Measurement: Thermocouple type K
Maximum Power: 600W
JBC-Set Temperature Profiles: 3 profiles ( 2, 3 or 4 steps)
User Temperature Profiles: 22 (up to 6 steps for each)
Maximum Work Time: 600 min. or indefinite
Fuse: 8 A T (100V & 120V), 4 A T (230V)
ESD/EOS / ESD-safe: Yes
PreHeater Weight: 4.78 kg. / 10.54 lb.
PreHeater Dimensions: 195 x 288 x 42 mm / 7.68 x 11.34 x 1.65 in

RWS Rework Adjustable Arm Specification

Net Weight: 5.10 kg (11.24lb)
Base Dimensions: 270 x 410 mm / 10.6 x 16.2 in
Height: 386.5 mm / 15.2 in
Arm Length: 444,5 mm / 17.5 in
ESD-Safe Connector: Yes
Package Dimensions: 474 x 368 x 195 mm / 18.66 x 14.49 x 7.68 in
Package Weight: 5.70 kg. / 12.57 lb.
